| Brand Name : | ZD |
| Model Number : | ZD-JC-1M-NM/NMR |
| Certification : | Rohs |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 1000pcs per week |
| Delivery Time : | 5-8 work days |

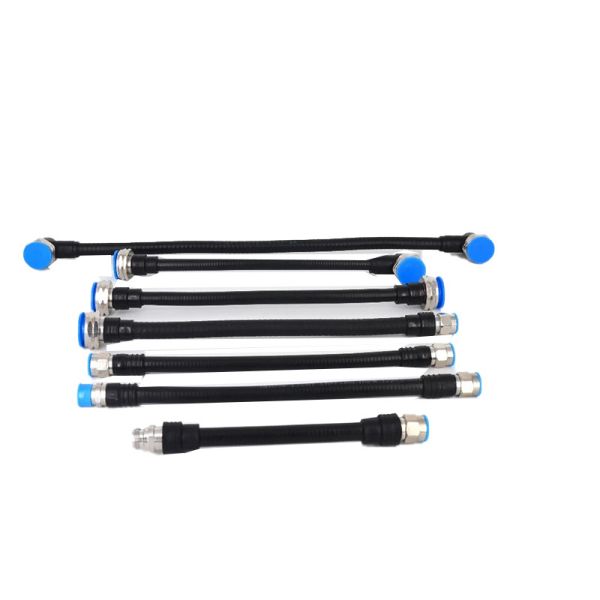

1 m RF jumper cable n male to n male right angle connector with 1/2 flexible cable
It is used for transmitting and receiving as the main feeder or sub-feeder in mobile communication systerm. It can also be used in other elictronic decives to transmitting high-frequency signal as low-loss transmission line.
| Electrical | ||||
| 1 | Characteristic Impedance | 50ohm | ||
| 2 | Frequency Range | DC-6GHz | ||
| 3 | VSWR | ≤1.15 | ||
| 4 | Dielectric withstanding voltage | ≥2500RMS,50Hz,at sea level | ||
| 5 | Dielectric Resistance | ≥5000MΩ | ||
| 6 | Contact Resistance | Outer Contact≤1.0mΩ ;Center Contact≤1.0mΩ | ||
| Mechanical | ||||
| 1 | Durability | Mating cycles ≥500 | ||
| Material and plating | ||||
| Description | Material | Plating | ||
| 1 | Body | Brass | Tri-alloy | |
| 2 | Insulator | PTFE | – | |
| 3 | Center conductor | Phosphor bronze | Ag | |
| 4 | O-ring | Silicone rubber | – | |
| 5 | Other | Brass | Ni | |
| Environmental | ||||
| 1 | Temperature Range | -40℃~+85℃ | ||
| 2 | Watertightness | IP67 | ||
| 3 | RoHS compliant | Pass | ||
| 4 | Salt-fog Test | 96 hours | ||
| Inspection | ||||
1.CNC machines ,advanced test equipment 2.All products are suit for ROHS. 3.ISO14001 certificate,ISO9001 certificate | ||||


|
