    50 Ohm Electrical RF Coaxial Connectors 4.3-10 Female To Din 7/16 Straight Female Adapter

    Ask Lasest Price
    Brand Name : ZD
    Model Number : ZD-AD-MNDF/DF
    Certification : RoHS
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000pieces/week
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    50 Ohm Electrical RF Coaxial Connectors 4.3-10 Female To Din 7/16 Straight Female Adapter

    Rf coaxial connector Mini Din 4.3-10 straight female to Din 7/16 straight female Adaptor

    50 Ohm Electrical RF Coaxial Connectors 4.3-10 Female To Din 7/16 Straight Female AdapterTECHNICAL SPECIFICATIONZD
    4310F-7/16F-01Rev:A/0

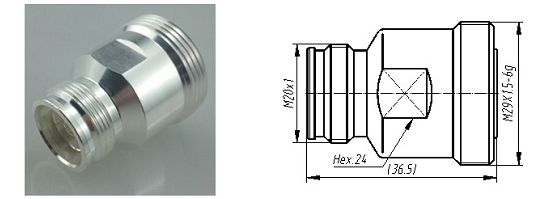

    1.Figure


    50 Ohm Electrical RF Coaxial Connectors 4.3-10 Female To Din 7/16 Straight Female Adapter

    2.Product Description
    4310F-7/16F 4.3-10 straight female to 7/16 straight female adapter
    3. Material and Plating
    Center contactTin-bronze/ Silver Plated
    Outer contactTin-bronze/ Silver Plated
    BodyBrass/ Silver Plated
    DielectricPTFE
    GasketSilicon Rubber
    NutBrass/ Nickel Plated
    4. Electrical Characteristics
    Characteristics Impedance50 Ohm
    Frequency RangeDC,6GHz
    Insulation Resistance>10000 MΩ
    Contact resistance4.3-10 typeDIN type
    Center contact5 MΩ≤0.4MΩ
    Outer contact≤1.O MΩ≤0.2MΩ
    Dielectric Strength2500V rms
    Working voltage1400V rms
    Insertion Loss≤0.10dB@DC'3GHz
    VSWR≤1.10@DC'3.0GHz
    PIM(2x43dBm)≤-160dBc
    5. EnviroNFental and Mechanical Specifications
    Durability (matings)500 cyclesI
    Thermal Shock Test MethodMIL-STD-202F, Method 107G, Test Condition B
    Vibration Test MethodMIL-STD-202, Meth. 204, Cond. B
    Temperature Range-65~+165℃
    RoHSCompliant

    The facts and figures contained herein are carefully complied to the best of our knowledge, but they are intended for general informational purposes only.
